Stainless Steel Flanges
Stainless steel RTJ Flange Supplier in Mumbai, Stainless steel Alloy Spacer Flange Stockists, Distributors of Stainless steel Blind Flanges, Stainless steel Alloy Threaded Flanges Exporter, Stainless steel Raised Face Weld Neck Flanges, Stainless steel Alloy Forged Flanges Manufacturer, Stainless steel Alloy Industrial Flanges Stockists, Stainless steel Alloy Flanges,
Vishal Tube Industries is one of the leading Manufacturer of Stainless steel flanges in india, We are ISO Certified and best quality product Exporter of Stainless steel Pipe Flanges in india. Alloy Forged Flanges also have strong oxidation resistance at temperatures as high as 1150 degrees C, provided that sulphur gases are not reduced. SS Raised Face Blind Flanges are often used at temperatures up to 1040 Degree C for unstable operation. On the other hand, SS Reducing Flanges are applied in conditions that require moist corrodents within a temperature range that is not normally taken in the service of high temperature. ASTM A182 Stainless Steel WNRF Flange are also used with excellent durability to 450 degrees F and low magnetic permeability at cryogenic temperatures.
Stainless steel flanges for inspection, cleaning or alteration are readily available. Stainless Steel Weld Neck Flanges usually come in a round shape. But in square and rectangular shapes, the Stainless Steel Slip On Flanges may also be made and customised. When they are bolted, the Stainless Steel Sae Flanges are joined together. In addition, the Stainless Steel Lap Joint Flanges are connected either by welding or threading to the piping system. Stainless Steel Orifice Flanges Gaskets are designed to meet precise pressure ratings. The molybdenum provides Stainless Steel Forged Flanges better complete corrosion resistant properties compared to Alloy 304, especially greater resistance to pitting and crevice corrosion in chloride environments. Stainless Steel RTJ Flanges additionally offer greater recoil, pressure to rupture and tensile strength at elevated temperatures, superb corrosion resistance and power attributes, and they're well suited to fabricated or shaped applications. The lower carbon variant is Stainless Steel 304 Spectacle Blind Flanges, and is resistant from sensitization. Thus, in heavy gauge welded parts, Stainless Steel Threaded Flanges Lap Joint Flanges are very widely used.
Stainless steel Slip On Flange, Stainless steel Alloy SWRF Flanges, BS4504 SS Plate Flange, EN 1092-1 Stainless Steel Threaded Flange, SS Socket Weld Flange, Stainless steel Pipe Flanges, Stainless steel Flanges manufacturers in India
Advantages Flanges
- Ventilation facility pipeline
- Solar energy facility
- Chemical industrial pipeline
- Water supply facility
- Food and Nourishment Industrial Pipeline
- Agriculture and garden production transporting system
Stainless Steel Flanges Specifications
| Specifications | Stainless Steel Flanges |
|---|---|
| ASME B16.5 Stainless Steel Flanges size range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Stainless Steel Flanges Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| Stainless Steel Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Stainless Steel Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Stainless Steel Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Stainless Steel Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Stainless Steel Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Stainless Steel Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most common types of Stainless Steel Flanges |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS Stainless Steel Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized manufacturer of |
|
| Stainless Steel Flanges Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
| Key markets and industries for Stainless Steel Flanges |
|
| Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Stainless Steel Flanges Application |
|
SS Flanges Chemical Composition Chart
| Grade/ Marked Symbol | Carbon (Max) | Manganese (max) | Silicon (maximum) | Phosphorus (max) | Sulfur (max) | Chromium | Molybdenum | Nickel | N |
| F304 | 0.08 | 2 | 0.75 | 0.045 | 0.030 | 18 - 20 | - | 8 - 11 | - |
| F304L | 0.035 | 2 | 1.0 | 0.045 | 0.030 | 18 - 20 | - | 8 - 13 | - |
| F316 | 0.08 | 2 | 1.0 | 0.045 | 0.030 | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
| F316L | 0.035 | 2 | 1.00 | 0.045 | 0.030 | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
| Grade/ Marked Symbol | Density | Melting Range | Tensile Stress | Yield Stress (0.2%Offset) | Elongation |
| F304 | 8.0 g/cm3 | 1400 °C (2550 °F) | 75000 Psi, 515MPa | 30000 Psi, 205 MPa | 35 % |
| F304L | 8.0 g/cm3 | 1400 °C (2550 °F) | 75000 Psi, 515MPa | 30000 Psi, 205 MPa | 35 % |
| F316 | 8.0 g/cm3 | 1400 °C (2550 °F) | 75000 Psi, 515MPa | 30000 Psi, 205 MPa | 35 % |
| F316L | 8.0 g/cm3 | 1399 °C (2550 °F) | 75000Psi, 515MPa | 30000 Psi, 205 MPa | 35 % |
| STANDARD | WNR. | UNS Designation | Japanese Industrial Standards (JIS) | British Standards | GOST- Russian National Standards | AFNOR (French Standard) | European Standards (EN) |
| Grade 304 | 1.4301 | S30400 | SUS 304 | BS 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| Grade 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | BS 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| Grade 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | BS 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Grade 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | BS 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |

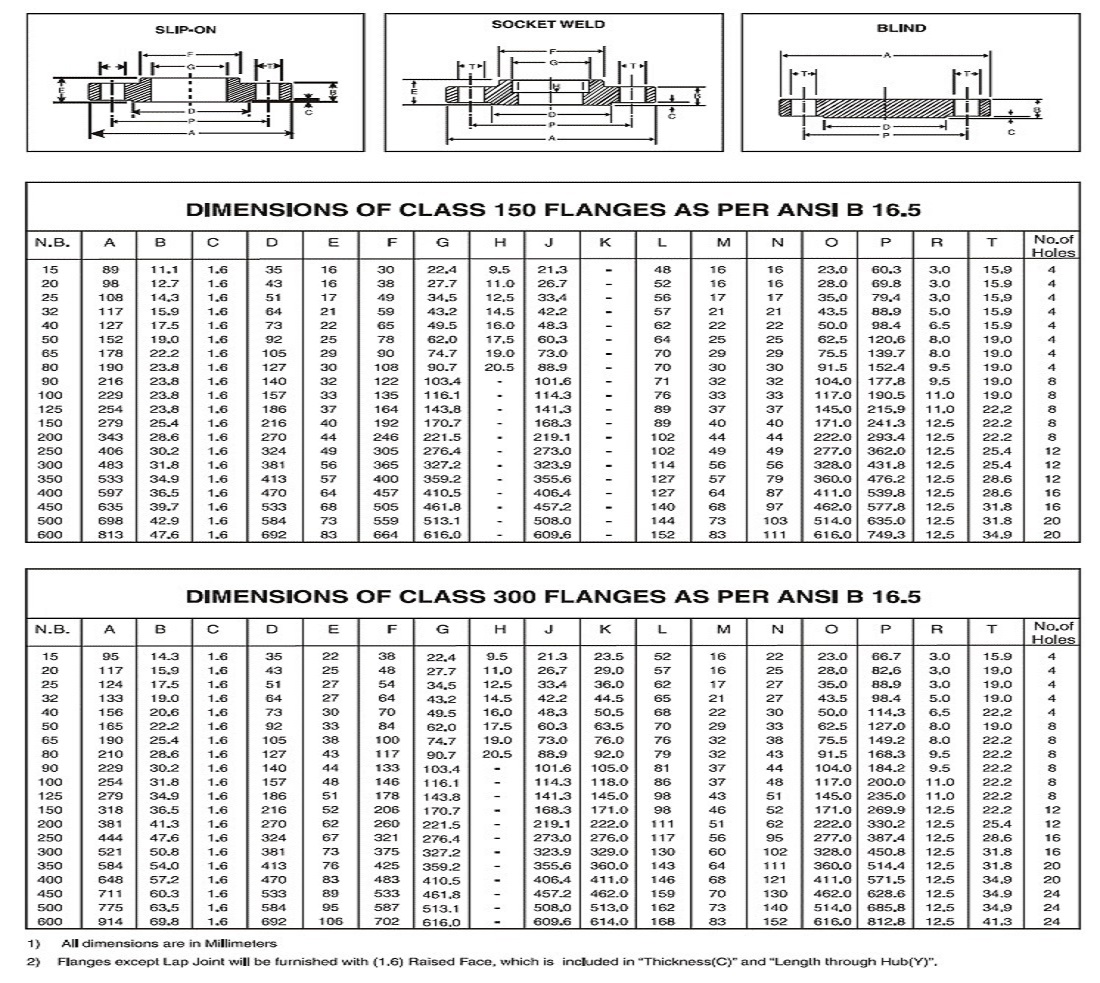

Dimensions of Stainless Steel Flanges
