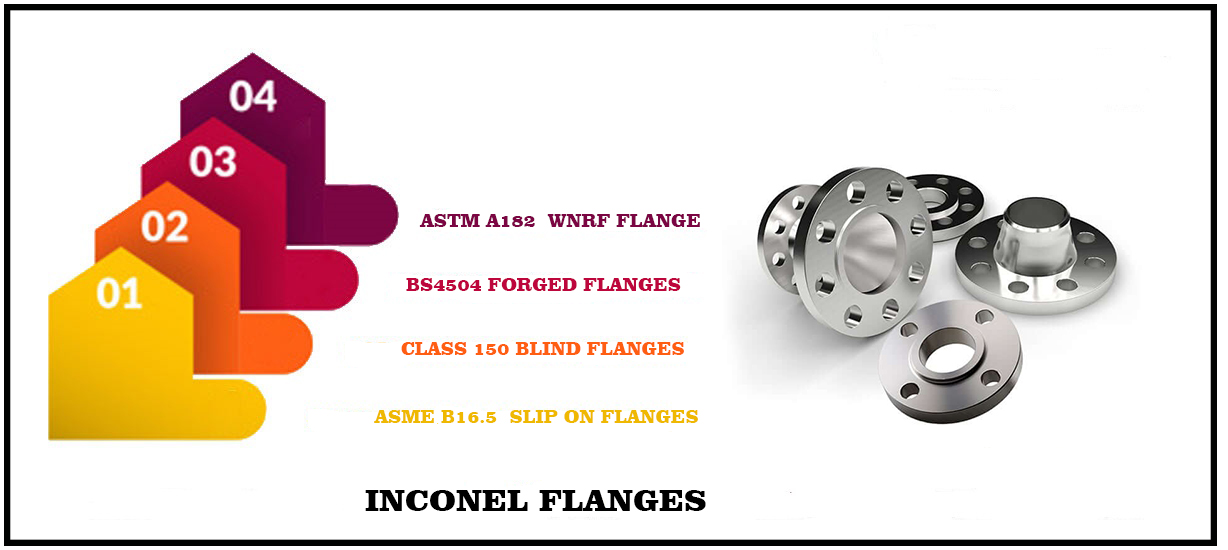

Inconel Flanges




Inconel Alloy Spacer Flange Stockists, Distributors of Inconel Blind Flanges, Inconel Alloy Threaded Flanges Exporter, Inconel Raised Face Weld Neck Flanges, Inconel Alloy Forged Flanges Manufacturer, Inconel Alloy Industrial Flanges Stockists, Inconel Alloy Flanges, Inconel Slip On Flange, Inconel RTJ Flange Supplier in Mumbai, Inconel Alloy SWRF Flanges, Inconel Pipe Flanges, Inconel Flanges manufacturers in India



Vishal Tube Industries is one of the leading Manufacturer of Inconel flanges in india, We are ISO Certified and best quality product Exporter of Inconel Alloy flanges in india. The resistance of the Inconel flanges to various oxidising substances such as nitrates, nitric acid, and oxidising salt is large. These flanges are helpful against localised corrosion, such as pitting, intergranular corrosion, corrosion of the crevice, and corrosion cracking due to stress. In combination with sufficient heat treatment, the addition of titanium to the alloy helps to stabilise the ASTM B564 Inconel Slip On Flange alloy against intergranular corrosion sensitisation. When exposed to moderate to high temperatures, even with a hot working temperature ranging from 1600o F to 2150o F, the nickel based Inconel Weld Neck Flange has strong mechanical properties. Inconel Blind Flanges have been used in the seamless tubing of the solar receivers by solar power stations using super-heated salt (potassium and sodium nitrate). In chemical process facilities handling mixed acids, both oxidising and reducing, these Inconel Socket Weld Flanges are used. Inconel Alloy Flanges resists a broad assortment of seriously polluted environments and is resistant to pitting and crevice corrosion.


Inconel Lap Joint Flanges are also used in chlorination plants up to 1000 degrees F and in plants with titanium dioxide. Our Inconel Ring Style Joint Flanges are certified to many different national and global specifications. Inconel Orifice Flanges are quickly manufactured (hot or cold) and can be attached using normal processes of welding, brazing, and soldering. A superalloy based on nickel is the alloy used to make Inconel flanges. In a wide variety of conditions, this superalloy not only exhibits outstanding oxidation resistance but also superior corrosion resistance. In addition, the Inconel Flanges could be used at temperatures ranging from cryogenic to a high temperature of 2000 ° F, since this alloy has excellent tensile strength and toughness properties. Compared to many other strongly alloyed nickel based materials, Inconel flanges have a high degree of formability, thus showing better weldability. Since these Inconel Weld Neck Flanges are likely to work, hardening should only be used at low cutting speeds and the cutting tool should be used at all times.

Inconel Flanges Specifications and Standards

Specifications Inconel Flanges
Inconel Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
ASME B16.5 Inconel Flange size range 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Inconel Flange Standard DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
Inconel Flange Standard ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Inconel Flange Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
Inconel Flange Standard EN 6Bar 10Bar 16Bar 25Bar 40Bar
Inconel Flange Standard JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Main Types Forged / Threaded / Screwed / Plate
Flange supporting material Gasket, Ring Joint, Flange Bolts
Most common types of Inconel Flanges
  • Socket Weld Ring Flange (SWRF), Inconel
  • Threaded Ring Flange, Inconel
  • Blind Ring Flange (BLRF), Inconel
  • Weld Neck Ring Flange (WNRF), Inconel
  • Slip-On Ring Flange (SORF), Inconel
  • Ring Type Joint Flange (RTJF), Inconel
  • Lap Joint Ring Flange (LJRF), Inconel
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
Inconel Pipe Flanges Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Inconel Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Specialized manufacturer of
  • DIN 2566 en 1092 1
  • Pn16 Flange
  • DIN 2566 pn16
  • Rtj Flange
  • Inconel Sorf Flange
  • Inconel Table Flanges
  • DIN 2566 pn10
  • Inconel Large Diameter Flange
  • Inconel Threaded Flanges
  • Inconel Blind Flanges
  • ASTM B564 Plate Flange
  • Inconel Weld Neck Flanges
  • Inconel Loose Flanges
  • ASTM B564 Orifice Flange
  • Inconel Slip-On Flanges
  • Alloy Lap Joint Flange
  • Inconel Socketweld Flanges
  • Inconel AS 4087 Water Flanges
Test Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector
Equipment Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin West Europe /Indian / USA / Japan / Korean
Inconel Flanges Standard

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • AS 2129: Table D; Table E; Table H
  • B.S: BS4504 , BS3293, BS1560, BS10
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • American standard (ANSI)
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • British standard (BS)
  • German (DIN)
  • Any other specilised flanges
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
Key markets and industries for Inconel Flanges
  • Nuclear power (mostly seamless).
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Petrochemicals and acids.
Export to Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc
Inconel Flanges Application
  • To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
ASME SB564 Inconel Flanges Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe
Inconel 601 2.4851 N06601 NCF 601 NA 49 XH60BT NC23FeA NiCr23Fe
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb
Inconel 718 2.4668 N07718 - - - - -

Chemical Composition of Grade Inconel Pipe Flanges

Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00
Inconel 601 0.10 max 1.0 max 0.5 max 0.015 max 1.0 max Balance 58.0 – 63.0 21.0 – 25.0
Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max - 5.0 max 58.0 min 20.0 - 23.0
Inconel 718 0.08 max 0.35 max 0.35 max 0.015 max 0.30 max - 50.00 - 55.00 17.00 - 21.00

Mechanical Properties of ASTM B564 Inconel Plate Flanges

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %
Inconel 601 8.1 g/cm3 1411 °C (2571 °F) Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %
Inconel 718 8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %

Dimensions of Inconel Flanges



Advantages Flanges

  •  Ventilation facility pipeline
  •  Solar energy facility
  •  Chemical industrial pipeline
  •  Water supply facility
  •  Food and Nourishment Industrial Pipeline
  •  Agriculture and garden production transporting system

Uses & Application


Chemical Oil Mills Petrochemical Mining
Fertilizers Shipbuilding Power Plant Steel Plant
Oil & Gas Defence Paper Ports
Cement Engineering Co. Sugar Government Org. etc.
