STAINLESS STEEL WELDOLET OLETS

STAINLESS STEEL WELDOLET OLETS

We offers weldolet olets, steel weldolet olets, stainless steel weldolet olets, nickel alloy weldolet olets, copper alloy weldolet olets weldolet olets, duplex steel weldolet olets, carbon steel weldolet olets and alloy steel weldolet olets.

Olets are known as branch connection fittings used to provide an outlet from a larger pipe to a smaller one. The primary pipe onto which the branch association is welded is generally called the Run or Header estimate. The pipe to which the branch association gives a channel is normally called the Branch or Outlet measure. Weldolet is an economical butt-weld branch connection, is considered to reduce stress concentrations and provide integral reinforcement manufactured according to the requirements of the clients. Weldolet is the type of fitting used to create a branch with the smaller size of main pipe. Weldolet usually used in piping with high pressure and temperature where the connection with the joint type buttweld. The use of reinforcing pad is not required on weldolet.

We also offer Weldolet Olets that are extensively used in various industry applications available in several size, grades, dimensions and grades in all materials such as stainless steel, duplex steel, alloy steel and carbon steel. The offered product are appreciated in the market because of the best performance and good quality of the products.

Stainless Steel Weldolet is a balanced austentic Steel which is widely applied and versatile in wide spectrum of products, finishes and forgings. The chemical composition, weldability, oxidation, mechanical properties and corrosion resistance allows this austentic steel to perform better at relatively low cost. The austentic steel performs well to hardening by cold work.

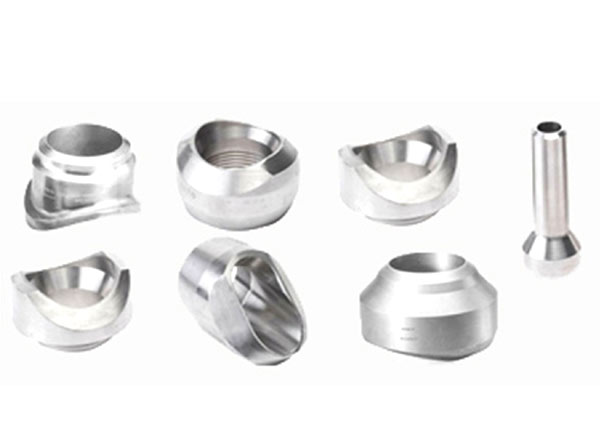

Vishal Tube Industries is a leading manufacturer of branch fitting, buttweld pipe olets, socket weld and threaded pipe olets in all material grades and wall thicknesses and in compliance with international standard MSS-SP-97. Our production range includes pipe olets such as weldolet, sockolet, threadolet, laterolet, elbolet, nipolets and sweepolets. We can also manufacture and supply forged flanged outlet fitting in Class 150 to Class 2500 flange ratings. Lateral and elbow olets can be supplied in butt-weld, socket-weld, and threaded end connections. Weld pipe olet or Weldolet is one of the most commonly used branch connection fitting. It is widely considered a buttweld fitting, as it is welded onto the outlet of the pipe. A welding outlet helps in minimizing the stress concentrations and provides integral reinforcement without the need for reinforcing the weld.

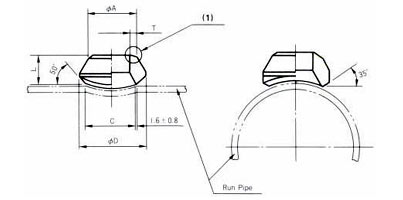

Dimension - Weldolet® Size on Size -STD- MSS SP97

NPS	A	B	C	D
1/2	3/4 19.05	1.3/8 34.93	15/16 23.81	5/8 15.88
3/4	7/8 22.23	1.5/8 41.28	1.3/16 30.16	13/16 20.64
1	1.1/16 26.99	2 50.80	1.7/16 36.51	1.1/32 26.19
1¼	1¼ 31.75	2.3/8 60.3	1.3/4 44.45	1.3/8 34.93
1½	1.5/16 33.34	2.7/8 73	2 50.80	1.5/8 41.28
2	1½ 38.10	3½ 88.90	2.9/16 65.09	2.1/16 52.39
2½	1.5/8 41.28	4.1/16 103.19	3 76.20	2.7/16 61.91
3	1.3/4 44.45	4.13/16 122.24	3.11/16 93.66	3.1/16 77.79
3½	2 50.80	5.3/8 136.53	3.7/8 98.43	3.9/16 90.49
4	2 50.80	6 152.40	4.3/4 120.65	4 101.60
5	2¼ 57.15	7.1/8 180.98	5.9/16 141.29	5.1/16 128.59
6	2.3/8 60.3	8½ 215.90	6.11/16 169.86	6.1/16 153.99
8	2.3/4 69.85	10.3/8 263.53	8.11/16 220.66	7.15/16 201.61
10	3.1/16 77.79	12.9/16 319.09	10.13/16 274.64	10 254.00
12	3.3/8 85.73	14.7/8 377.83	12.13/16 325.44	12 304.80
14	3½ 88.90	16.1/8 409.58	14.1/16 357.19	13¼ 336.55
16	3.11/16 93.66	18¼ 463.55	16.1/16 407.99	15¼ 387.35
18	4.1/16 103.19	20.3/4 527.05	18.5/8 473.08	17¼ 438.15
20	4.5/8 117.48	23.1/16 585.79	20.1/16 509.59	19¼ 488.95
24	5.3/8 136.53	27.7/8 708.03	25.1/8 638.18	23¼ 590.55
NPS	A	B	C	D

Uses & Application

Chemical	Oil Mills	Petrochemical	Mining
Fertilizers	Shipbuilding	Power Plant	Steel Plant
Oil & Gas	Defence	Paper	Ports
Cement	Engineering Co.	Sugar	Government Org. etc.
