Stainless Steel Sockolet Olets

Stainless Steel Sockolet Olets

We offers sockolet olets, steel sockolet olets, stainless steel sockolet olets, nickel alloy sockolet olets, copper alloy sockolet olets sockolet olets, duplex steel , carbon steel sockolet olets and alloy steel sockolet olets.

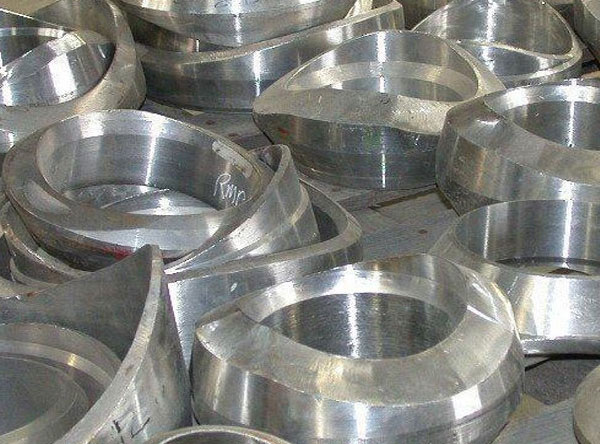

Stainless Steel Sockolet Olets are known as branch connection fittings used to provide an outlet from a larger pipe to a smaller one. Sockolet uses the fundamental Weldolet however the branch affixes by method for an attachment inside the olet. The bore matches the outlet bore, and the existence of a counter bore roughly the size of the OD of the outlet provides a socket where the pipe can sit, encouraging fitting and welding. The Sockolet is considered a socket fitting, and manufactured in 3000LBS, 6000LBS and 9000LBS classes.

We also offer Stainless Steel Sockolet Olets that are extensively used in various industry applications available in several size, grades, dimensions and grades in all materials such as stainless steel, duplex steel, alloy steel and carbon steel. The offered product are appreciated in the market because of the best performance and good quality of the products.

Vishal Tube Industries is a leading manufacturer of branch fitting, buttweld pipe olets, socket weld and threaded pipe olets in all material grades and wall thicknesses and in compliance with international standard MSS-SP-97. Our production range includes pipe olets such as weldolet, sockolet, threadolet, laterolet, elbolet, nipolets and sweepolets. We can also manufacture and supply forged flanged outlet fitting in Class 150 to Class 2500 flange ratings. Lateral and elbow olets can be supplied in butt-weld, socket-weld, and threaded end connections. Weld pipe olet or Weldolet is one of the most commonly used branch connection fitting. It is widely considered a buttweld fitting, as it is welded onto the outlet of the pipe. A welding outlet helps in minimizing the stress concentrations and provides integral reinforcement without the need for reinforcing the weld.

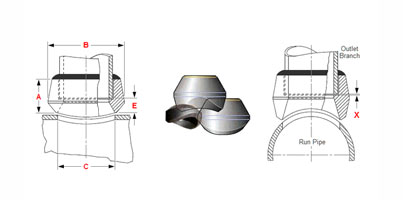

Dimension - Weldolet® Size on Size -STD- MSS SP97

NPS	A	B	C	D	E
1/2	1 25.40	1.13/32 35.71	29/32 23.01	0.622 15.80	9/16 14.28
3/4	1.1/16 26.98	1.23/32 43.65	1.5/32 29.36	0.824 20.93	9/16 14.28
1	1.5/16 33.33	2 50.8	1.7/16 36.51	1.049 26.64	25/32 19.84
1¼	1.5/16 33.33	2.9/16 65.08	1.3/4 44.45	1.380 35.05	3/4 19.05
1½	1.3/8 34.92	2.27/32 72.23	2 50.8	1.610 40.89	3/4 19.05
2	1½ 38.1	3.15/32 88.10	2.9/16 65.08	2.067 52.50	13/16 20.63
2½	1.9/16 39.68	4.1/16 103.18	3 76.2	2.469 62.71	3/4 19.05
3	1.3/4 44.45	4.13/16 122.23	3.11/16 93.66	3.068 77.93	15/16 23.81
3½	1.11/16 42.86	5.3/8 136.52	4.7/16 112.71	3.548 90.12	11/16 17.46
4	1.7/8 47.62	5.31/32 151.60	4.3/4 120.65	4.026 102.26	1.1/16 26.98
5	2.5/8 66.67	7.5/16 185.73	5.9/16 141.28	5.047 128.19	1.11/32 34.13
6	2.3/4 69.85	8.5/8 219.07	6.11/16 169.86	6.065 154.05	1.13/32 35.71
			X = Min. 1/16 (1.6 mm)
