NICKEL FORGED SOCKET WELD BUSHING

NICKEL FORGED SOCKET WELD BUSHING

Nickel Forged Socket Weld Bushing, Nickel Forged Socket Weld Bushingg Manufacturer, Suppliers & Exporter. ASME A815, 403, 234, 860 ASME SB 336, 111, 466 ASME B16.11, MSS SP-79, BS 3799 Forged Socket Weld Bushing.

We are distinguished supplier, manufacturer and exporter of Nickel Forged Socket Weld Bushing that offers in a comprehensive collection to our esteemed patrons. Made up of superior quality raw materials, these bushings are highly resistant to wear and tear. Our Forged Socket Weld Bushing Pipe Fittings are rust resistant, and are also widely used by all mechanical sectors and workshop areas. Each product that we offer is designed and made by our skilled professionals, who manufacture the same as per set industry norms and standards. Features such as Value Added Services, Hot Dipped Galvanizing, Epoxy Coating, Electro Polish, Draw & Expansion, etc.

We are major supplier of Forged Socket Weld Bushing for many small and large scale industries. We Vishal Tube Industries believe in quality and we strive to provide exceptionally good quality Forged Socket Weld Bushing and products to our domestic and international clients.

All the offered products are designed and manufactured using finest quality material. We have gained vast expertise in offering a better-quality range of Forged Socket Weld Bushing that are manufactured using top quality raw materials. Using high temperature alloys to manufacture our fittings, we make sure that our range can be applied in various industrial applications.

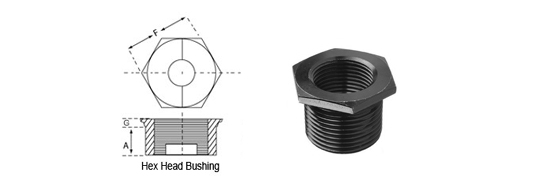

NPS 1/2 to 4 - 3000 LBS

NPS	Minimum Length E	Minimum Hex Height J	Nominal F
1/2	14	8	22
3/4	16	10	27
1	19	10	35
1¼	21	14	44.5
1½	21	16	51
2	22	18	63.5
2½	27	19	76
3	28	21	89
4	32	25	117.5

Uses & Application

Chemical	Oil Mills	Petrochemical	Mining
Fertilizers	Shipbuilding	Power Plant	Steel Plant
Oil & Gas	Defence	Paper	Ports
Cement	Engineering Co.	Sugar	Government Org. etc.

Packaging

Depending on the size of the diameter of the elbows these individually or in bundles are transported. Pipe fittings in bunches are taken together with metal strips or wires in the transverse direction. It is important to make sure that the strapping is very firm, so that the individual pipes can not move against each other and thereby suffer damage. Subject to transport, duration and turnover can be wrapped in eg plastic jute fabric and is provided at the bundle ends . specialty fittings shall be protected against corrosion and are usually coated or in appropriately chosen cases or wood-corrugated structures packaged. Specialty coatings, such as of PE, require padding to ensure that the protective layer is not damaged.

Marking of packages

Through a correct and complete marking of packaging will create the conditions to avoid misuse, accidents, wrong delivery, mass and volume losses and customs penalties. We do marking very clear and precise on Fittings. You should contrast clearly with the package, usually it is applied in black color

Types of Packaging

•  Bundles (hexagonal)
•  Wooden Boxes
•  Crates (steel/wooden)
•  Special crates for U-Bend tubes with each radius separated
