Monel Buttweld Lateral Cap
Highly acclaimed Manufacturer & Exporter presents best offer ever on Buttweld Lateral Cap. We have specialization to manufacture customized Buttweld Lateral Cap per customers’ specifications, we welcome small quantity order.
Vishal Tube Industries the best exporter of premium quality range of ANSI/ASME B16.9 Butt weld lateral Cap, Stainless Steel Fasteners & Other Stainless Steel Pipe fittings that are prepared under the expert guidance of our diligent workforce. We ensure you to offer a good quality product and deliverability on time. These ANSI/ASME B16.9 Buttweld lateral cap has unique features such as corrosion resistance, sturdy and durable.
ASME B16.9 Monel Buttweld Monel Cap Pipe Fittings standard covers pressure-temperature ratings, materials, dimensions, tolerances,marking, testing, and methods of designating openings for fittings.
Vishal Tube Industries manufacturer & exporter of ASME B 16.9 Monel Buttweld Lateral availbale in various forms and size, products like Elbows,Tee, Cross and educers etc.Buttweld fittings dimensions, dimensional tolerances are defined in the ASME B16.9 standards. Light-weight corrosion resistant fittings are made to MSS SP43.We also offer custom-made Buttweld Lateral that have been widely appreciated by our clients. ASME B 16.9 Buttweld Lateral Pipe Fittings standard covers pressure-temperature ratings, materials, dimensions, tolerances,marking, testing, and methods of designating openings for fittings.
Advantages of Buttweld Lateral Cap
- Offer permanent leakproof
- Adds strength and power to the pipng structure
- Reduce pressure losses
- Deliver a framework that uses atleast space
Specifications
| Schedule: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Materials: | Monel End Cap Monel 400, Monel K500, Monel R-405 |
| Type: | Butt Weld (BW) |
| Dimension: | ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25 |

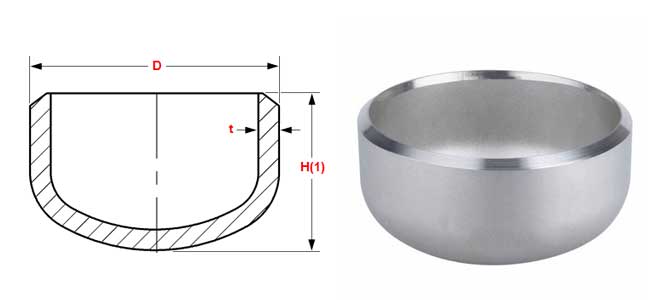

Dimensions of Buttweld Lateral Cap
| NPS | O.D. D |
Len H |
W.T. t |
| 1/2 | 21.3 | 25 | 4.57 |
| 3/4 | 26.7 | 25 | 3.81 |
| 1 | 33.4 | 38 | 4.57 |
| 1¼ | 42.2 | 38 | 4.83 |
| 1½ | 48.3 | 38 | 5.08 |
| 2 | 60.3 | 38 | 5.59 |
| 2½ | 73 | 38 | 7.11 |
| 3 | 88.9 | 51 | 7.62 |
| 3½ | 101.6 | 64 | 8.13 |
| 4 | 114.3 | 64 | 8.64 |
| 5 | 141.3 | 76 | 9.65 |
| 6 | 168.3 | 89 | 10.92 |
| 8 | 219.1 | 102 | 12.7 |
| 10 | 273 | 127 | 12.7 |
| 12 | 323.8 | 152 | 12.7 |
| 14 | 355.6 | 165 | 12.7 |
| 16 | 406.4 | 178 | 12.7 |
Uses & Application
| Chemical | Oil Mills | Petrochemical | Mining |
| Fertilizers | Shipbuilding | Power Plant | Steel Plant |
| Oil & Gas | Defence | Paper | Ports |
| Cement | Engineering Co. | Sugar | Government Org. etc. |
PACKAGING
Depending on the size of the diameter of the fittings these individually or in bundles are transported. Pipe fittings in bunches are taken together with metal strips or wires in the transverse direction. It is important to make sure that the strapping is very firm, so that the individual pipes can not move against each other and thereby suffer damage. Subject to transport, duration and turnover can be wrapped in eg plastic jute fabric and is provided at the bundle ends . specialty fittings shall be protected against corrosion and are usually coated or in appropriately chosen cases or wood-corrugated structures packaged. Specialty coatings, such as of PE, require padding to ensure that the protective layer is not damaged.
MARKING OF PACKAGES
Through a correct and complete marking of packaging will create the conditions to avoid misuse, accidents, wrong delivery, mass and volume losses and customs penalties. We do marking very clear and precise on Fittings. You should contrast clearly with the package, usually it is applied in black color.
Types of Packaging
- Bundles (hexagonal)
- Wooden Boxes
- Crates (steel/wooden)
- Special crates for U-Bend tubes with each radius separated
