ASTM B366 Inconel 600 Buttweld Fittings 45 degree pipe elbow, ASME b16.9 Inconel 601 Buttweld fittings 90 degree elbow, Inconel 718 Pipe elbow 180 degree

ASTM B366 INCONEL BUTTWELD 45/90/180 DEGREE ELBOW

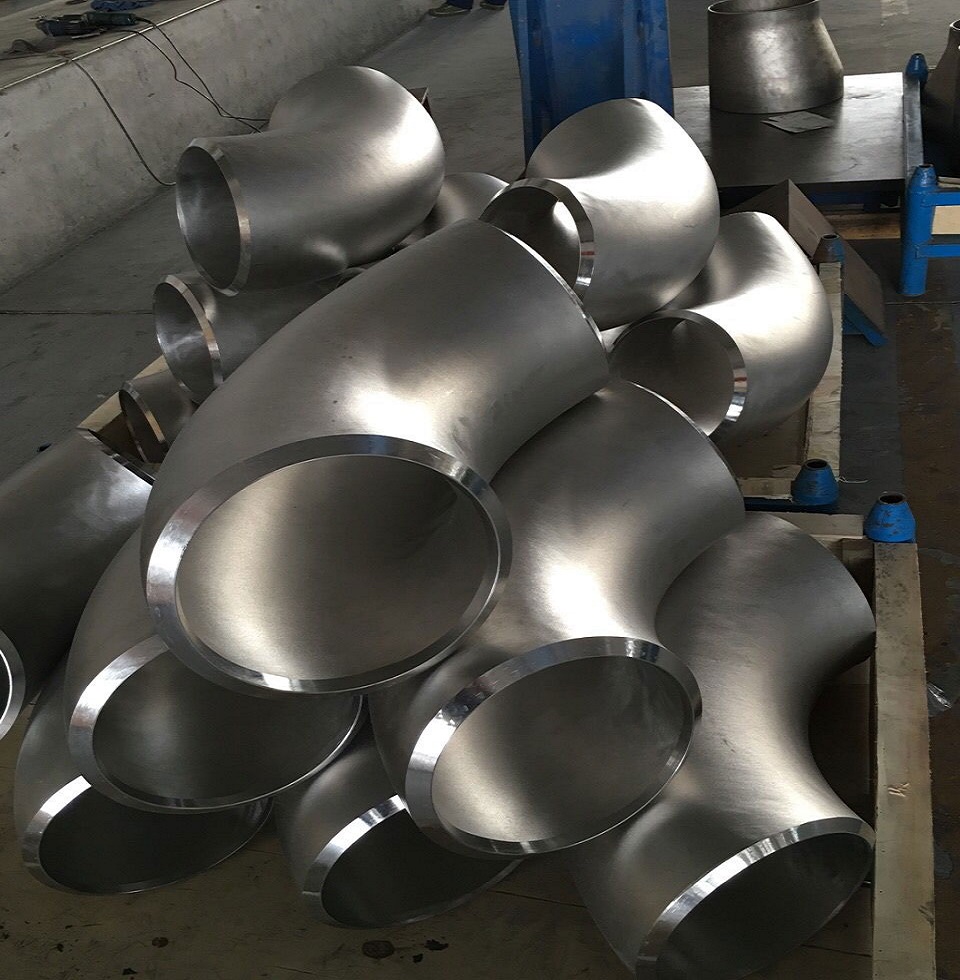

VishalTube Industries is manufacturer, exporter and supplier of ASTM B366 Inconel Butt weld 45 degree Long Radius Elbow. Inconel 600 Buttweld 90 degree Long Radius Elbow manufactured using superior grade raw materials. Inconel 601 Butt weld 180 degree Long Radius Elbow are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.

We are the best stockholder and distributor of ASME B16.9 Inconel Buttweld 45°/90°/180° Long Radius Elbow available in various forms and size. Buttweld fittings dimensions, dimensional tolerances are defined in the ASME B16.9 standards. Light-weight corrosion resistant fittings are made to MSS SP43.We also offer custom-made Inconel Buttweld 45°/90°/180° Long Radius Elbow that have been widely appreciated by our clients.

We are producing wide range of pipe fittings including Inconel socketweld pipe fittings, Inconel threaded weld pipe fittings and Buttweld pipe fittings. VishalTube industries offer premium quality range of ANSI/ASME B16.9 180° Long Radius Elbow that is manufactured under the expert guidance of our diligent workforce. Inconel Butt weld fittings get their name from the method for which they attached to a piping system. Each end of a butt weld fitting is beveled, and it is attached by butting the fitting up to the adjoining pipe and welding along the bevel. This connection is both stronger and smoother than threaded or socket weld connections, making butt weld fittings the preferred product for critical applications.

Advantages Buttweld 45/90/180 degree Elbow

Ventilation facility pipeline
Solar energy facility
Chemical industrial pipeline
Water supply facility
Food and Nourishment Industrial Pipeline
Agriculture and garden production transporting system

Specifications

Schedule:	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Materials:	Inconel Inconel 600, Inconel 601, Inconel 625, Inconel 718
Type:	Butt Weld (BW)
Dimension:	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

DIMENSIONS OF ASME B 16.9 BUTTWELD 45° LONG RADIUS ELBOW

NPS	O.D. D	45 degrees Long Radius Center-to-End B	45 degrees 3D Center-to-End B
1/2	21.3	16	-
3/4	26.7	19	24
1	33.4	22	31
1¼	42.2	25	39
1½	48.3	29	47
2	60.3	35	63
2½	73	44	79
3	88.9	51	95
3½	101.6	57	111
4	114.3	64	127
5	141.3	79	157
6	168.3	95	189
8	219.1	127	252
10	273	159	316
12	323.8	190	378
14	355.6	222	441
16	406.4	254	505
18	457	286	568
20	508	318	632
22	559	343	694
24	610	381	757
26	660	406	821
28	711	438	883
30	762	470	964
32	813	502	1010
34	864	533	1073
36	914	565	1135
38	965	600	1200
40	1016	632	1264
42	1067	660	1326
44	1118	695	1389
46	1168	727	1453
48	1219	759	1516

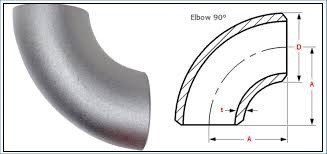

DIMENSIONS OF ASME B 16.9 BUTTWELD 90° LONG RADIUS ELBOW

NPS	O.D. D	90 degrees Long Radius Center-to-End A	90 degrees 3D Center-to-End A
1/2	21.3	38	-
3/4	26.7	38	57
1	33.4	38	76
1¼	42.2	48	95
1½	48.3	57	114
2	60.3	76	152
2½	73	95	190
3	88.9	114	229
3½	101.6	133	267
4	114.3	152	305
5	141.3	190	381
6	168.3	229	457
8	219.1	305	610
10	273	381	762
12	323.8	457	914
14	355.6	533	1067
16	406.4	610	1219
18	457	686	1372
20	508	762	1524
22	559	838	1676
24	610	914	1829
26	660	991	1981
28	711	1067	2134
30	762	1143	2286
32	813	1219	2438
34	864	1295	2591
36	914	1372	2743
38	965	1448	2896
40	1016	1524	3048
42	1067	1600	3200
44	1118	1676	3353
46	1168	1753	3505
48	1219	1829	3658

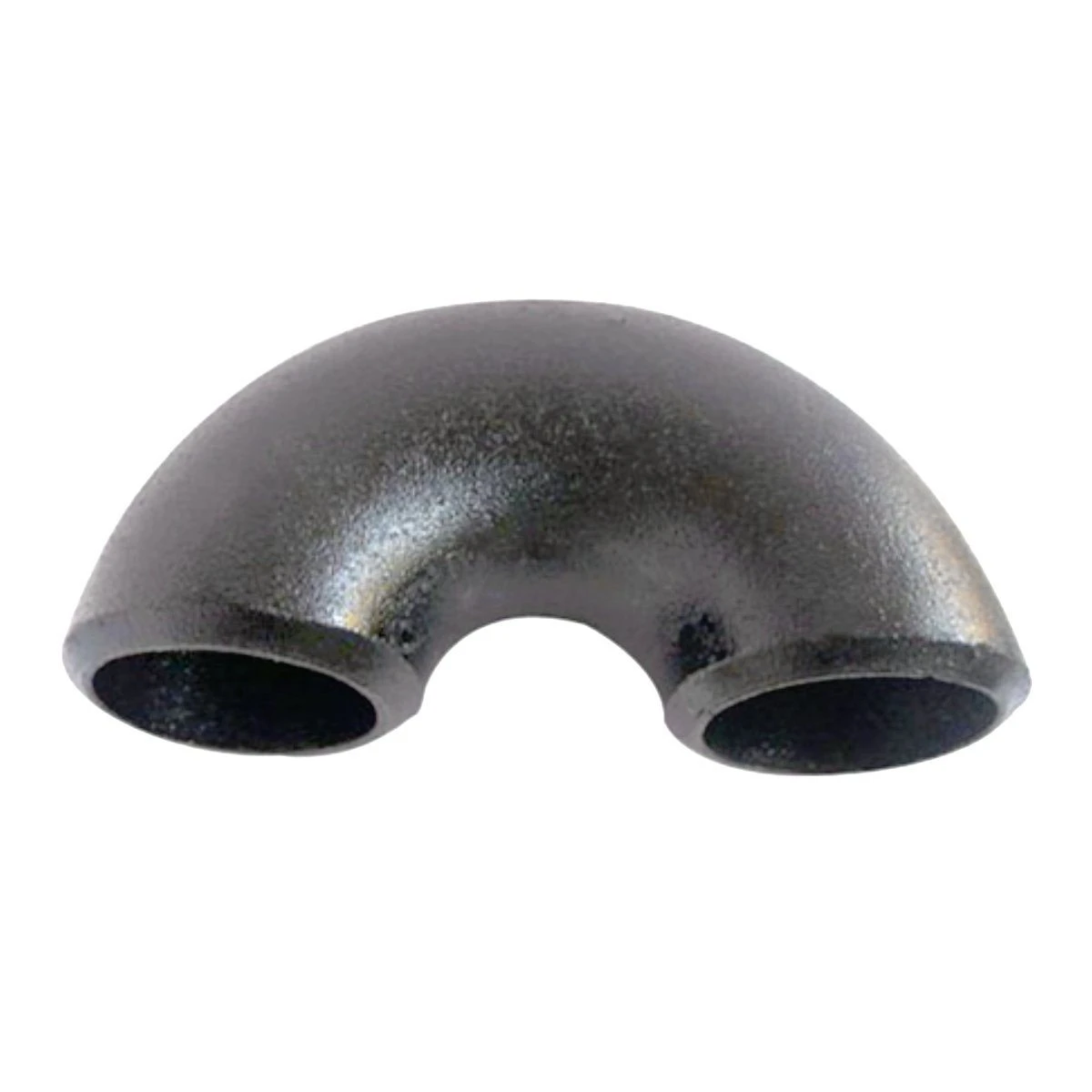

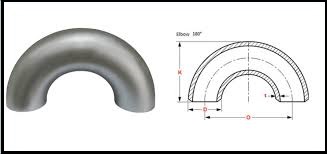

DIMENSIONS OF ASME B 16.9 BUTTWELD 180° LONG RADIUS ELBOW

NPS	O.D. D	180° Long Radius
NPS	O.D. D	Center to Center O	Back to Face K
1/2	21.3	76	48
3/4	26.7	76	51
1	33.4	76	56
1¼	42.2	95	70
1½	48.3	114	83
2	60.3	152	106
2½	73	190	132
3	88.9	229	159
3½	101.6	267	184
4	114.3	305	210
5	141.3	381	262
6	168.3	457	313
8	219.1	610	414
10	273	762	518
12	323.8	914	619
14	355.6	1067	711
16	406.4	1219	813
18	457	1372	914
20	508	1524	1016
22	559	1676	1118
24	610	1829	1219

Uses & Application

Chemical	Oil Mills	Petrochemical	Mining
Fertilizers	Shipbuilding	Power Plant	Steel Plant
Oil & Gas	Defence	Paper	Ports
Cement	Engineering Co.	Sugar	Government Org. etc.

ANSI/ASME B16.9 1.5D Elbow Godown

We are the manufacturer of ANSI/ASME B16.9 1.5D Elbow, we have our own A 3 level 10,000 feet and well equipped warehouse located at Kalamboli, Navi Mumbai, India. We thanks to our skilled staff, we can produce a large number of ANSI/ASME B16.9 1.5D Elbow that comply with the different current standards. Choosing and selecting our raw materials is one of the keys to our production.

ANSI/ASME B16.9 1.5D Elbow Marking & Packaging

While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 1.5D Elbow as needed with the most suitable & visible marking technique. Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the ANSI/ASME B16.9 1.5D Elbow according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.

Why choose us for ANSI/ASME B16.9 1.5D Elbow

On-Time Delivery Every Time
Competitive Prices
High Quality Product
Quick Response by Email & by Phone
An ISO 9001:2008 Certified Company

INCONEL BUTTWELD 45/90/180 DEGREE ELBOW
