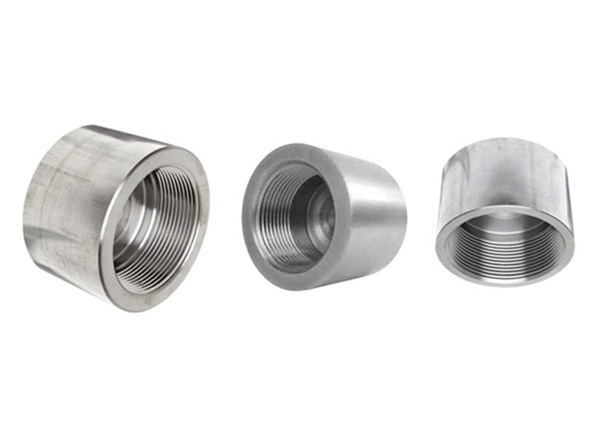

HASTELLOY FORGED THREADED CAP
Hastelloy Threaded Pipe Cap, Hastelloy Threaded End Cap Manufacturer, Suppliers & Exporter. ASME A815, 403, 234, 860 ASME SB 336, 111, 466 ASME B16.11, MSS SP-79, BS 3799 Forged Threaded Pipe / End Cap.
We are one of the leading Manufacturers, Supplier and Exporters of High Quality ASME B16.11 Hastelloy Forged Threaded Cap . They are also used to close the ends of hydraulic or pneumatic pipes and tubes. They are used in the plumbing apparatus of domestic, commercial and industrial water supply lines, machinery and processing equipment etc. These Threaded Cap available in different size, grades, specification & thickness as per the clients requirments. These Forged Threaded Cap widely used in various application industry like oil & gas, chemical processing, petrochemical etc.
We Manufacture a wide range of Forged Threaded Cap (ASTM A182 /ASME SA182), Carbon Steel Threaded Cap Stockholder, Alloy Steel Threaded Cap Dealers, Forged Threaded Cap Distributors, Inconel 600 Forged Cap in India, Nickel Alloy Threaded Cap Suppliers, SS Forged Cap Exporter in India, Stainless Steel Forged Cap, ASME SA182 Threaded Cap, Duplex Steel Forged Cap, Class 2000 LBS Forged Threaded Cap, MSS SP-79 Threaded Cap, Super Duplex Steel Forged Cap, ASME B16.11 Forged Threaded Cap, Forged Threaded Cap Exporter in Qatar, Forged Threaded Cap Stockist, Steel Forged Cap in United States, Threaded Cap in Malaysia, Hastelloy Cap, Manufacturer of Comprehensive Range Monel Forged Threaded Cap, Titanium Forged Cap in India, Copper Nickel Forged Threaded Cap are Available in Different Dimensions and Specifications. We are Leading Manufacturer of Alloy 20 Forged Threaded Cap in INDIA.
We are continuously expanding our product line as a Stockholder of Threaded Cap in india and Trader of Threaded Cap in india and provides our products to client in a combination of good grades, thickness, length, and surface finish. To fulfil Emerging customers need we Started working as a distributor and becomes largest Distributor of Threaded Cap in india.
All the offered products are designed and manufactured using finest quality material. We have gained vast expertise in offering a better-quality range of Forged Threaded Cap that are manufactured using top quality raw materials. Using high temperature alloys to manufacture our fittings, we make sure that our range can be applied in various industrial applications.
Advantages of Forged Threaded Half/Full Coupling
- Durable finish standards
- Accurate dimension
- Tensile strength
- Leak Proof
Specifications
| Schedule: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Materials: | Hastelloy Grade: Hastelloy B2, Hastalloy B3, Hastelloy C22, Hastelloy C276, Hastelloy X |
| Type: | Butt Weld (BW) |
| Dimension: | ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25 |

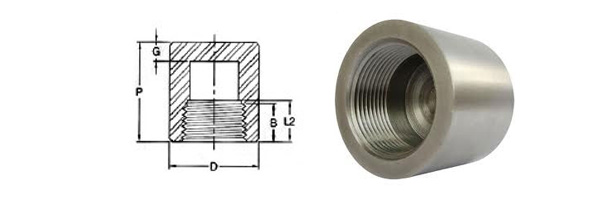

Dimensions NPS 1/2 to 4 - 2000 LBS
| NPS | End to End | Outside Diameter | Minimum End Wall Thickness |
Minimum Length of Thread | |
| A | D | G | B | J | |
| 1/2 | 32 | 28 | 6.4 | 10.9 | 13.6 |
| 3/4 | 37 | 35. | 6.4 | 12.7 | 13.9 |
| 1 | 41 | 44 | 9.7 | 14.7 | 17.3 |
| 1¼ | 44 | 57 | 9.7 | 17 | 18 |
| 1½ | 44 | 64 | 11.2 | 17.8 | 18.4 |
| 2 | 48 | 76 | 12.7 | 19 | 19.2 |
| 2½ | 60 | 92 | 15.7 | 23.6 | 28.9 |
| 3 | 65 | 108 | 19 | 25.9 | 30.5 |
| 4 | 68 | 140 | 22.4 | 27.7 | 33 |
NPS 1/2 to 4 - 6000 LBS
| NPS | End to End | Outside Diameter | Minimum End Wall Thickness |
Minimum Length of Thread | |
| A | D | G | B | J | |
| 1/2 | 33 | 38 | 7.9 | 10.9 | 13.6 |
| 3/4 | 38 | 44 | 7.9 | 12.7 | 13.9 |
| 1 | 43 | 57 | 11.2 | 14.7 | 17.3 |
| 1¼ | 46 | 64 | 11.2 | 17 | 18 |
| 1½ | 48 | 76 | 12.7 | 17.8 | 18.4 |
| 2 | 51 | 92 | 15.7 | 19 | 19.2 |
| 2½ | 64 | 108 | 19 | 23.6 | 28.9 |
| 3 | 68 | 127 | 22.4 | 25.9 | 30.5 |
| 4 | 75 | 159 | 28.4 | 27.7 | 33 |
Uses & Application
| Chemical | Oil Mills | Petrochemical | Mining |
| Fertilizers | Shipbuilding | Power Plant | Steel Plant |
| Oil & Gas | Defence | Paper | Ports |
| Cement | Engineering Co. | Sugar | Government Org. etc. |
Packaging
Depending on the size of the diameter of the elbows these individually or in bundles are transported. Pipe fittings in bunches are taken together with metal strips or wires in the transverse direction. It is important to make sure that the strapping is very firm, so that the individual pipes can not move against each other and thereby suffer damage. Subject to transport, duration and turnover can be wrapped in eg plastic jute fabric and is provided at the bundle ends . specialty fittings shall be protected against corrosion and are usually coated or in appropriately chosen cases or wood-corrugated structures packaged. Specialty coatings, such as of PE, require padding to ensure that the protective layer is not damaged.
Marking of packages
Through a correct and complete marking of packaging will create the conditions to avoid misuse, accidents, wrong delivery, mass and volume losses and customs penalties. We do marking very clear and precise on Fittings. You should contrast clearly with the package, usually it is applied in black color
Types of Packaging
- Bundles (hexagonal)
- Wooden Boxes
- Crates (steel/wooden)
- Special crates for U-Bend tubes with each radius separated
