Hastelloy Concentric Reducers, High Quality Hastelloy Concentric Reducers, Manufacturer Of Hastelloy Concentric Reducer, Global Supplier of ANSI B16.9 Pipe Reducer Fittings, Hastelloy Concentric Reducers Dimensions, Hastelloy Buttweld Concentric Reducer, Hastelloy Concentric Reducer, Hastelloy Buttweld Pipe Reducer in Mumbai, India. Hastelloy Concentric Reducers, Buttweld Concentric Reducers Fittings, Stockist of Hastelloy Concentric Reducer, Best Price of Hastelloy Concentric Reducer Fittings, Butt Weld Hastelloy Concentric Pipe Reducer, Hastelloy Concentric Reducers Dealer in India, ASME B16.9 Hastelloy Concentric Reducer.

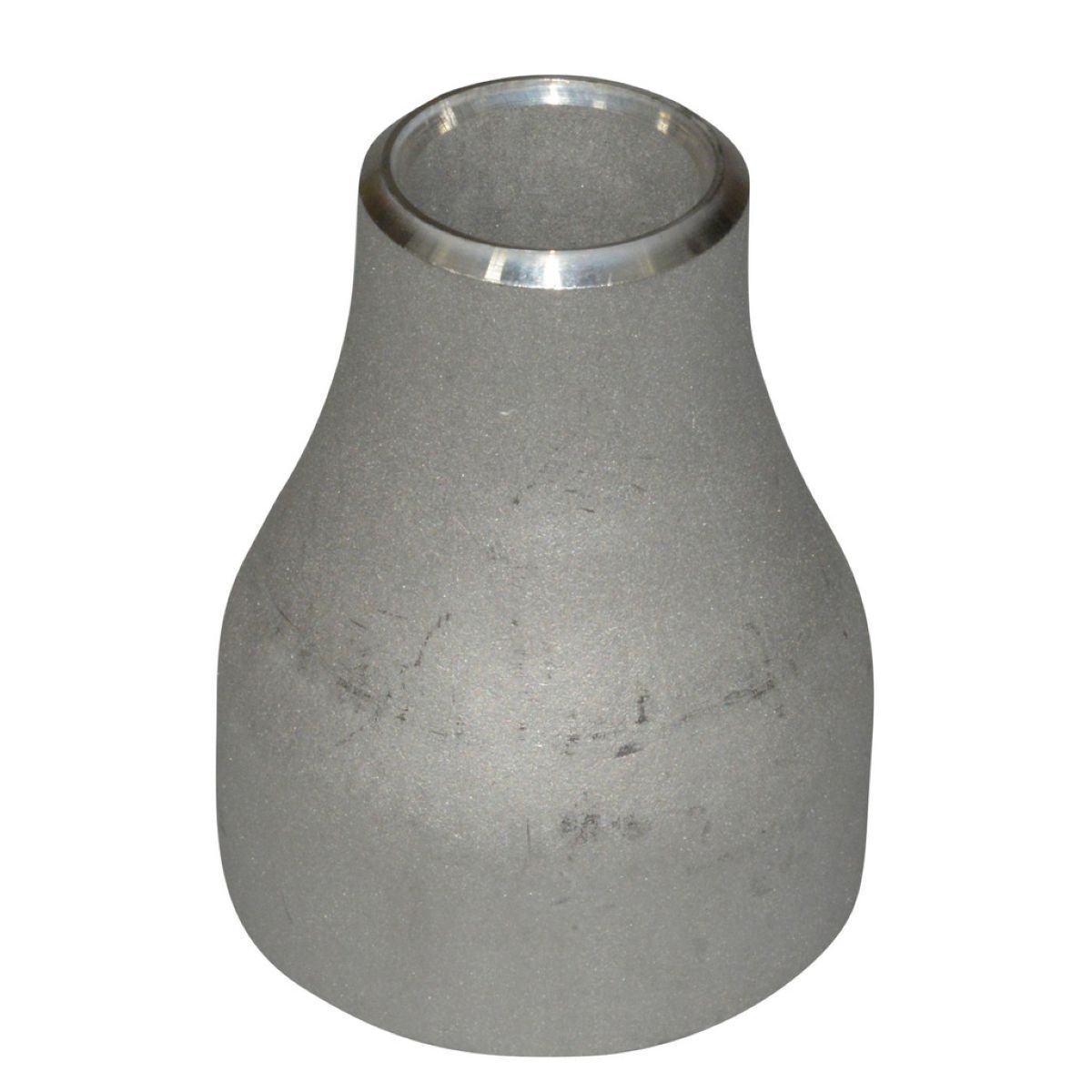

Our huge in-house production capacity through our in-house manufacturing plant helps us to create a chain of quality products that may dispense their valuable services to your different industrial application but may never differ in quality. We are manufacturers, suppliers and exporters of Hastelloy Concentric Reducers, a type of Pipe Reducer that fastens pipe sections on the same axis and is conical in shape. These pipe fittings have varying ends and can join unequal diameter pipes on different pipe sections falling on the same axis. Our Hastelloy Concentric Reducers are tested and certified for accuracy, durability and quality, and play a key role in the conveyance of semi-liquid mixtures and abrasives in the liquid state. Our ANSI B16.9 Hastelloy Concentric Pipe Reducers are suitable for use in the plumbing and automobile industry.

Hastelloy Buttweld Concentric Reducer are used to properly reduce into and out of circulating pumps The concentric reducer pipe fitting also allows both the inlet and outlet ends to align to a common centre line. Some of the important parameters used to select a concentric reducer are pressure/vacuum, max temp compression, approximate force, elongation etc. They are manufactured in various alloys, schedules, sizes and flange configurations. Hastelloy Concentric reducers frequently trap air when used at the suction of the pump. Hastelloy Concentric reducer save installation space and reduce costs. Piping systems must be anchored when using concentric reducer.

Leveraging on the support of our dexterous workforce, we are able to put forth an outstanding array of Hastelloy Concentric Reducer. This reducer is according to the market standards by utilizing high quality material & modern techniques. Our reducer is well tested on several parameters so as to dispatch a defect free range. The offered reducer is made accessible in various specifications to meet the requirements of our customers.

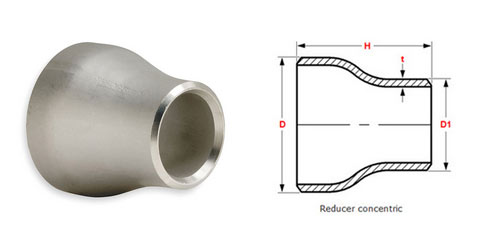

DIMENSIONS OF BUTTWELD CONCENTRIC REDUCER

Nominal Diameter		Outside Diameter		End to End
		D1*D2
DN	NPS	Series A	Series B	H
20×15	3/4×1/2	26.9×21.3	25×18	38
20×10	3/4×3/8	26.9×17.3	25×14	38
25×20	1×3/4	33.7×26.9	32×25	51
25×15	1×1/2	33.7×21.3	32×18	51
32×25	1.1/4×1	42.4×33.7	38×32	51
32×20	1.1/4×3/4	42.4×26.9	38×25	51
32×15	1.1/4×1/2	42.4×21.3	38×18	51
40×32	1.1/2×1.1/4	48.3×42.4	45×38	64
40×25	1.1/2×1	48.3×33.7	45×32	64
40×20	1.1/2×3/4	48.3×26.9	45×25	64
40×15	1.1/2×1/2	48.3×21.3	45×18	64
50×40	2×1.1/2	60.3×48.3	57×45	76
50×32	2×1.1/4	60.3×42.4	57×38	76
50×25	2×1	60.3×33.7	57×32	76
50×20	2×3/4	60.3×26.9	57×25	76
65×50	2.1/2×2	73.0×60.3	76×57	89
65×40	2.1/2×1.1/2	73.0×48.3	76×45	89
65×32	2.1/2×1.1/4	73.0×42.4	76×38	89
65×25	2.1/2×1	73.0×33.7	76×32	89
80×65	3×2.1/2	88.9×73.0	89×76	89
80×50	3×2	88.9×60.3	89×57	89
80×40	3×1.1/2	88.9×48.3	89×45	89
80×32	3×1.1/4	88.9×42.4	89×38	89
90×80	3.1/2×3	101.6×88.9	-	102
90×65	3.1/2×2.1/2	101.6×73.0	-	102
90×50	3.1/2×2	101.6×60.3	-	102
90×40	3.1/2×1.1/2	101.6×48.3	-	102
90×32	3.1/2×1.1/4	101.6×42.4	-	102
100×90	4×3.1/2	114.3×101.6	-	102
100×80	4×3	114.3×88.9	108×89	102
100×65	4×2.1/2	114.3×73.0	108×76	102
100×50	4×2	114.3×60.3	108×57	102
100×40	4×1.1/2	114.3×48.3	108×45	102
125×100	5×4	141.3×114.3	133×108	127
125×90	5×3.1/2	141.3×101.6	-	127
125×80	5×3	141.3×88.9	133×89	127
125×65	5×2.1/2	141.3×73.0	133×76	127
125×50	5×2	141.3×60.3	133×57	127
150×125	6×5	168.3×141.3	159×133	140
150×100	6×5	168.3×114.3	159×108	140
150×90	6×3.1/2	168.3×101.6	-	140
150×80	6×3	168.3×88.9	159×89	140
150×65	6×2.1/2	168.3×73.0	159×76	140
200×150	8×6	219.1×168.3	219×159	152
200×125	8×5	219.1×141.3	219×133	152
200×100	8×4	219.1×114.3	219×108	152
200×90	8×3.1/2	219.1×101.6	-	152
250×200	10×8	273.0×219.1	273×219	178
250×150	10×6	273.0×168.3	273×159	178
250×125	10×5	273.0×141.3	273×133	178
250×100	10×4	273.0×114.3	273×108	178
300×250	12×10	323.9×273.1	325×273	203
300×200	12×8	323.9×219.1	325×219	203
300×150	12×6	323.9×168.3	325×159	203
300×125	12×5	323.9×141.3	325×133	203
350×300	14×12	355.6×323.9	377×325	330
350×250	14×10	355.6×273.0	377×273	330
350×200	14×8	355.6×219.1	377×219	330
350×150	14×6	355.6×168.3	377×159	330
400×350	16×14	406.4×355.6	426×377	356
400×300	16×12	406.4×323.9	426×325	356
400×250	16×10	406.4×273.0	426×273	356
400×200	16×8	406.4×219.1	426×219	356
450×400	18×16	457×406.4	478×426	381
450×350	18×14	457×355.6	478×377	381
450×300	18×12	457×323.9	478×325	381
450×250	18×10	457×273.0	478×273	381
500×450	20×18	508×457	529×478	508
500×400	20×16	508×406.4	529×426	508
500×350	20×14	508×355.6	529×377	508
500×300	20×12	508×323.9	529×325	508
550×500	22×20	559×508	-	508
550×450	22×18	559×457	-	508
550×400	22×16	559×406.4	-	508
550×350	22×14	559×355.6	-	508
600×550	24×22	610×559	-	508
600×500	24×20	610×508	630×529	508
600×450	24×18	610×457	630×478	508
600×400	24×22	610×406.4	630×426	508
650×600	26×24	660×610	-	610
650×550	26×22	660×559	-	610
650×500	26×20	660×508	-	610
650×450	26×18	660×457	-	610
700×650	28×26	711×660	-	610
700×600	28×24	711×610	720×630	610
700×550	28×22	711×559	-	610
700×500	28×20	711×508	720×530	610
750×700	30×28	762×711	-	610
750×650	30×26	762×660	-	610
750×600	30×24	762×610	-	610
750×550	30×22	762×559	-	610
800×750	32×30	813×762	-	610
800×700	32×28	813×711	820×720	610
800×650	32×26	813×660	-	610
800×600	32×24	813×610	820×630	610
850×800	34×32	864×813	-	610
850×750	34×30	864×762	-	610
850×700	34×28	864×711	-	610
850×650	34×26	864×660	-	610
900×850	36×34	914×864	-	610
900×800	36×32	914×813	920×820	610
900×750	36×30	914×762	-	610
900×700	36×28	914×711	920×720	610
950×900	38×36	965×914	-	610
950×850	38×34	965×864	-	610
950×800	38×32	965×813	-	610
950×750	38×30	965×762	-	610
1000×950	40×38	1016×965	-	610
1000×900	40×36	1016×914	1020×920	610
1000×850	40×34	1016×864	-	610
1000×800	40×32	1016×813	1020×820	610
1050×1000	42×40	1067×1016	-	610
1050×950	42×38	1067×965	-	610
1050×900	42×36	1067×914	-	610
1050×850	42×34	1067×864	-	610
1100×1050	44×42	1118×1067	-	610
1100×1000	44×40	1118×1016	1120×1020	610
1100×950	44×38	1118×965	-	610
1100×900	44×36	1118×914	1220×920	610
1150×1100	46×44	1168×1118	-	711
1150×1050	46×42	1168×1067	-	711
1150×1000	46×40	1168×1016	-	711
1150×950	46×38	1168×965	-	711
1200×1150	48×46	1220×1168	-	711
1200×1100	48×44	1220×1118	1220×1120	711
1200×1050	48×42	1220×1067	-	711
1200×1000	48×40	1220×1016	1220×1020	711

Uses & Application

Chemical	Oil Mills	Petrochemical	Mining
Fertilizers	Shipbuilding	Power Plant	Steel Plant
Oil & Gas	Defence	Paper	Ports
Cement	Engineering Co.	Sugar	Government Org. etc.

ANSI/ASME B16.9 Butt weld Concentric Reducer Godown

While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 Butt weld Concentric Reducer as needed with the most suitable & visible marking technique. Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the ANSI/ASME B16.9 Butt weld Concentric Reducer according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.

ANSI/ASME B16.9 Butt weld Concentric Reducer Marking & Packaging

While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 Butt weld Concentric Reducer as needed with the most suitable & visible marking technique.
