DUPLEX STEEL FORGED SOCKET WELD EQUAL/REDUCING/CROSS TEE EXPORTERS AND STOCKIST
Duplex Steel Forged Socket Weld Equal Tee, ASTM A182 Duplex Steel Forged Socket Weld Equal Tee, Duplex Steel Forged Socket Weld Reducing Tee Suppliers Qatar, Ukraine, United Kingdom, France, Italy, Turkey, Germany, Indonesia, Singapore, Kazakhstan, Oman, Saudi Arabia, Iraq may more.

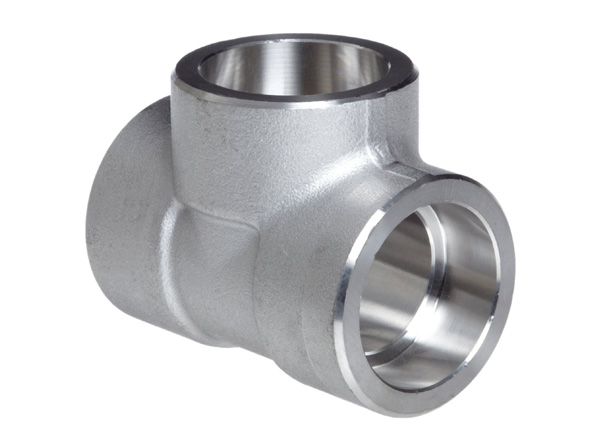

Specialist of Exporting Equal Tee, Duplex Steel Unequal Tee, MSS SP-79 . Duplex Steel Forged Socket Weld Tees, Duplex Steel Socket Weld Tees. Duplex Stee Socket weld Equal Cross, Duplex Steel Socket Weld Equal Cross Tee Stockist & Exporter.
Specialist of Exporting Equal Tee, Duplex Steel Unequal Tee, MSS SP-79 . Duplex Steel Forged Socket Weld Tees, Duplex Steel Socket Weld Tees. Duplex Stee Socket weld Equal Cross, Duplex Steel Socket Weld Equal Cross Tee Stockist & Exporter.
We offer the same in customized sizes, shapes and specifications to our valuable customers. We Export Forged Socket Weld Tees in Qatar, Ukraine, United Kingdom, France, Italy, Turkey, Germany, Indonesia, Singapore, Kazakhstan, Oman, Saudi Arabia, Iraq.
Our offered range of Forged Cross Fittings is designed and developed in accordance with the international quality standards at our infrastructure facility to attain highest benchmarks of quality. Our modernized infrastructure is crowned by means of modern tools and advanced machines that enable us to meet the big demands of customers in dexterous manner. Meanwhile, our products are can further be made-to-order as per the detailed requirements given by our valuable clienteles.
Advantages
- Durable finish standards
- Accurate dimension
- Tensile strength
- Leak Proof
Specifications
| Schedule: | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Materials & Grades: | Duplex Steel Gr: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
| Type: | Socketweld Fittings |
| Dimension: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |

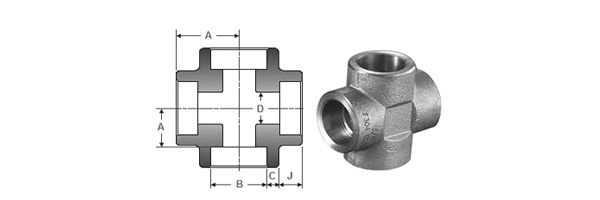

Dimensions: NPS 1/2 to 4 - 2000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1¼ | 17 | 18 | 56 | 44 | 3.89 |
| 1½ | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2½ | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
Dimensions : NPS 1/2 to 4 - 3000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
| 3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
| 1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
| 1¼ | 17 | 18 | 62 | 51 | 5.28 |
| 1½ | 17.8 | 18.4 | 75 | 60 | 5.56 |
| 2 | 19 | 19.2 | 84 | 64 | 7.14 |
| 2½ | 23.6 | 28.9 | 102 | 83 | 7.65 |
| 3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
| 4 | 27.7 | 33 | 152 | 114 | 11.18 |
Dimensions : NPS 1/2 to 4 - 6000 LBS - ASME B16.11
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1¼ | 17 | 18 | 75 | 60 | 10.59 |
| 1½ | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2½ | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
Uses & Application
| Chemical | Oil Mills | Petrochemical | Mining |
| Fertilizers | Shipbuilding | Power Plant | Steel Plant |
| Oil & Gas | Defence | Paper | Ports |
| Cement | Engineering Co. | Sugar | Government Org. etc. |
Packaging
Depending on the size of the diameter of the elbows these individually or in bundles are transported. Pipe fittings in bunches are taken together with metal strips or wires in the transverse direction. It is important to make sure that the strapping is very firm, so that the individual pipes can not move against each other and thereby suffer damage. Subject to transport, duration and turnover can be wrapped in eg plastic jute fabric and is provided at the bundle ends . specialty fittings shall be protected against corrosion and are usually coated or in appropriately chosen cases or wood-corrugated structures packaged. Specialty coatings, such as of PE, require padding to ensure that the protective layer is not damaged.
Marking of packages
Through a correct and complete marking of packaging will create the conditions to avoid misuse, accidents, wrong delivery, mass and volume losses and customs penalties. We do marking very clear and precise on Fittings. You should contrast clearly with the package, usually it is applied in black color
Types of Packaging
- Bundles (hexagonal)
- Wooden Boxes
- Crates (steel/wooden)
- Special crates for U-Bend tubes with each radius separated
