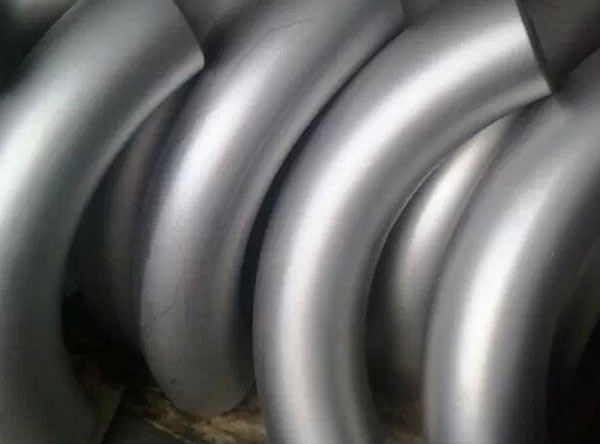

Alloy Steel Buttweld Long Radius 3D/5D Bend
Long radius 90 Degree elbows 3D & 5D in sizes up to and including 4” are provided with 4” (102 mm) long tangents, sizes 5” to 10” are provided with 1D long tangents and sizes 12” to 30” are provided with 12” (305 mm) long tangents.
ANSI B16.9 Alloy Steel Buttweld 3D/5D Pipe Bends, ASME B16.9 Alloy Steel 3D/5D Pipe Bends, Butt Weld Alloy Steel 3D/5D Pipe Bends, Alloy Steel 5D Bends Pipe, Stockist of Alloy Steel 3D/5D Pipe Bend, Buttweld Alloy Steel 3D/5D Pipe Bend, Alloy Steel 3D/5D Pipe Bends Dealer in India, ASTM A403 Alloy Steel 3D/5D Pipe Bends, Buttweld Alloy Steel 3D/5D Pipe Bends, Steel 5D Pipe Bend Wholesaler, Alloy Steel 3D/5D Pipe Bend, Nickel Alloy 200 3D/5D Pipe Bends, Alloy Steel Buttweld 3D/5D Pipe Bend, High Quality 3D/5D Pipe Bends Manufacturer in Mumbai, India.
Vishal Tube Industries is one of the leading Manufacturer of Long Radius Alloy Steel 3D/5D Bend in india, we are award winning Supplier of Alloy Steel Long Radius 3D/5D Bend in india, We are ISO Certified and best quality product Exporter of Long Radius Alloy Steel 3D/5D Bend in india. Vishal Tube Industries is Largest Stockist of Long Radius Alloy Steel 3D/5D Bend in india. We are continuously expanding our product line as a Stockholder of Long Radius Alloy Steel 3D/5D Bend in india and Trader of Long Radius Alloy Steel 3D/5D Bend in india and provides our products to client in a combination of good grades, thickness, length, and surface finish. To fulfil Emerging customers need we Started working as a distributor and becomes largest Distributor of Long Radius 3D/5D Bend in india.
We Manufacture a wide range of Buttweld Bend (ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43), SS Buttweld Pipe Bend Exporter in India, Stainless Steel Buttweld Long Radius Bend, Buttweld Titanium Bend, ASTM A403 LR Pipe Bend, ASME B16.9 Inconel Buttweld Bend, Buttweld Piggable Pipe Bends, Hot Bend Stockholder, Buttweld Inconel 3D/5D Pipe Bend Dealers, Carbon Steel Induction Bend Distributors, Alloy Steel Buttweld Titanium 5D Bend in Saudi Arabia, Nickel Alloy Buttweld 5D Bend Suppliers, Inconel Buttweld 3D/5D Bend.
Advantages Buttweld Long Radius 3D/5D Bend
- Uses in Oil and Gas Pipeline
- Uses in Chemcial Industry
- Uses in Plumbing
- Uses in Heating
- Uses in Water Supply Systems
- Uses in Power Plant
- Uses in Paper & Pulp Industry
- Uses in Fabrication Industry
Specifications
| Schedule: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Materials: | Alloy Steel Grade: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Type: | Butt Weld (BW) |
| Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
DIMENSIONS OF BUTTWELD LONG RADIUS 3D/5D BEND
| Nominal Pipe Size |
Outside Diameter |
Inside Diameter |
Wall Thickness |
Center To End |
Pipe Schedule |
Weight Pounds |
| 1/2 | 0.84 | 0.622 | 0.109 | 1.5 | 40 | 0.16 |
| 3/4 | 1.05 | 0.824 | 0.113 | 1.5 | 40 | 0.17 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 40 | 0.4 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.88 | 40 | 0.55 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 2.25 | 40 | 0.8 |
| 2 | 2.38 | 2.07 | 0.154 | 3 | 40 | 1.6 |
| 2 1/2 | 2.88 | 2.47 | 0.203 | 3.75 | 40 | 3.2 |
| 3 | 3.5 | 3.07 | 0.216 | 4.5 | 40 | 4.8 |
| 3 1/2 | 4 | 3.55 | 0.226 | 5.25 | 40 | 6.6 |
| 4 | 4.5 | 4.03 | 0.237 | 6 | 40 | 8.9 |
| 5 | 5.56 | 5.05 | 0.258 | 7.5 | 40 | 15.1 |
| 6 | 6.62 | 6.07 | 0.28 | 9 | 40 | 24 |
| 8 | 8.62 | 7.98 | 0.322 | 12 | 40 | 47.8 |
| 10 | 10.75 | 10.02 | 0.365 | 15 | 40 | 83.4 |
| 12 | 12.75 | 12 | 0.375 | 18 | * | 123 |
| 14 | 14 | 13.25 | 0.375 | 21 | 30 | 155 |
| 16 | 16 | 15.25 | 0.375 | 24 | 30 | 206 |
| 18 | 18 | 17.25 | 0.375 | 27 | * | 262 |
| 20 | 20 | 19.25 | 0.375 | 30 | 20 | 324 |
| 24 | 24 | 23.25 | 0.375 | 36 | 20 | 466 |
| 30 | 30 | 29.25 | 0.375 | 45 | * | 720 |
| 36 | 36 | 35.25 | 0.375 | 54 | * | 1,039 |
| 42 | 42 | 41.25 | 0.375 | 63 | * | 1,420 |
| 48 | 48 | 47.25 | 0.375 | 72 | * | 2,000 |
ANSI/ASME B16.9 BUTTWELD LONG RADIUS 3D/5D BEND GODOWN
We are the manufacturer of ANSI/ASME B16.9 Butt weld Long Radius 3D/5D Bend. We thanks to our skilled staff, we can produce a large number of ANSI/ASME B16.9 Buttweld Long Radius 3D/5D Bend that comply with the different current standards. Choosing and selecting our raw materials is one of the keys to our production.
WHY CHOOSE US FOR ASME B16.9 BUTTWELD LONG RADIUS 3D/5D BEND?
- On-Time Delivery Every Time
- Competitive Prices
- High Quality Product
- Quick Response by Email & by Phone
- An ISO 9001:2008 Certified Company
ASME B16.9 BUTTWELD LONG RADIUS 3D/5D BEND MARKING & PACKAGING
While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 Long Radius 3D/5D Bend as needed with the most suitable & visible marking technique. Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the ANSI/ASME B16.9 Long Radius 3D/5D Bend according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.
SHIPPING POLICY
Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.
